ECCO Gravel Mat

ECCO Gravel Mat

Regular price €32.00
Regular price Sale price €32.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

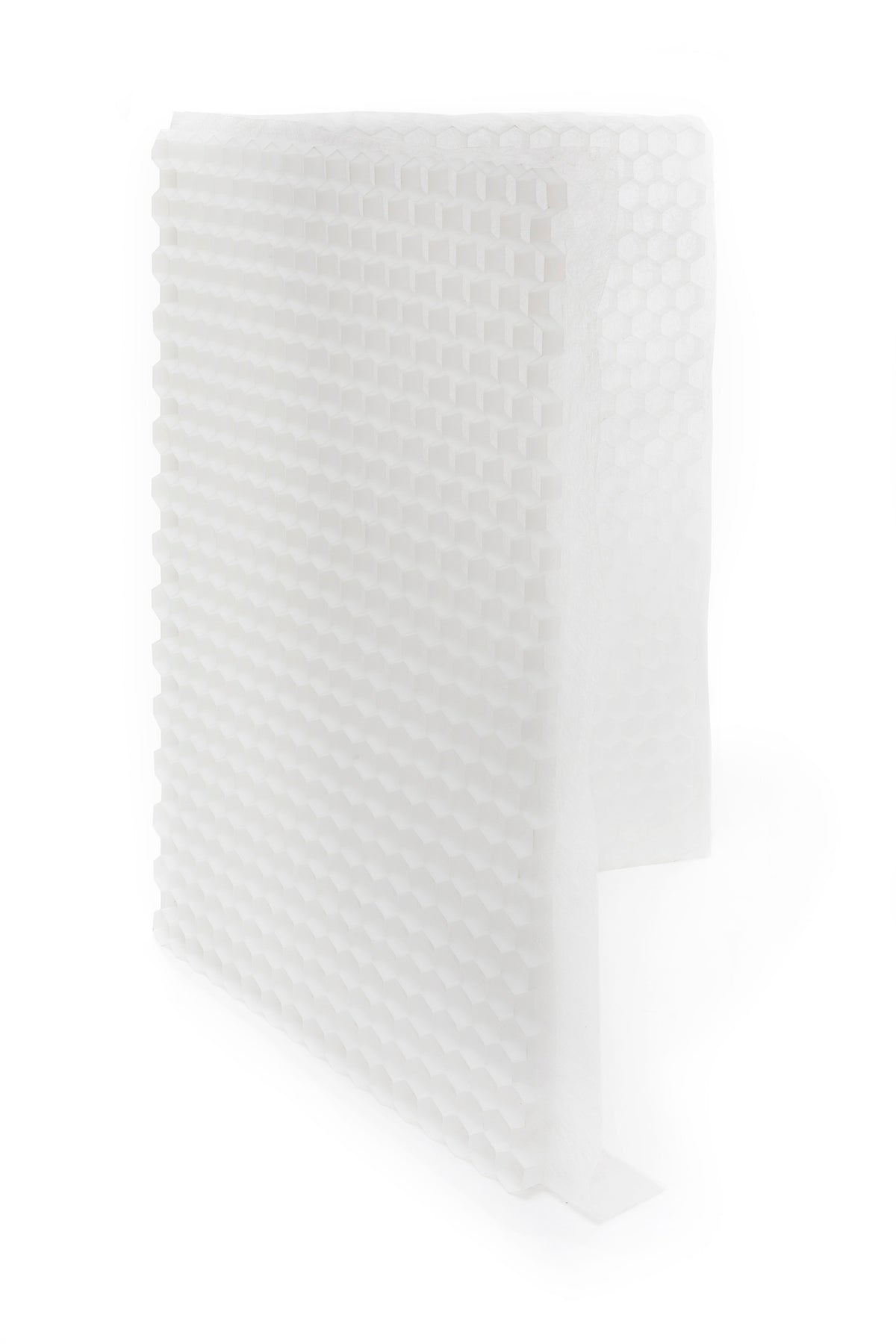

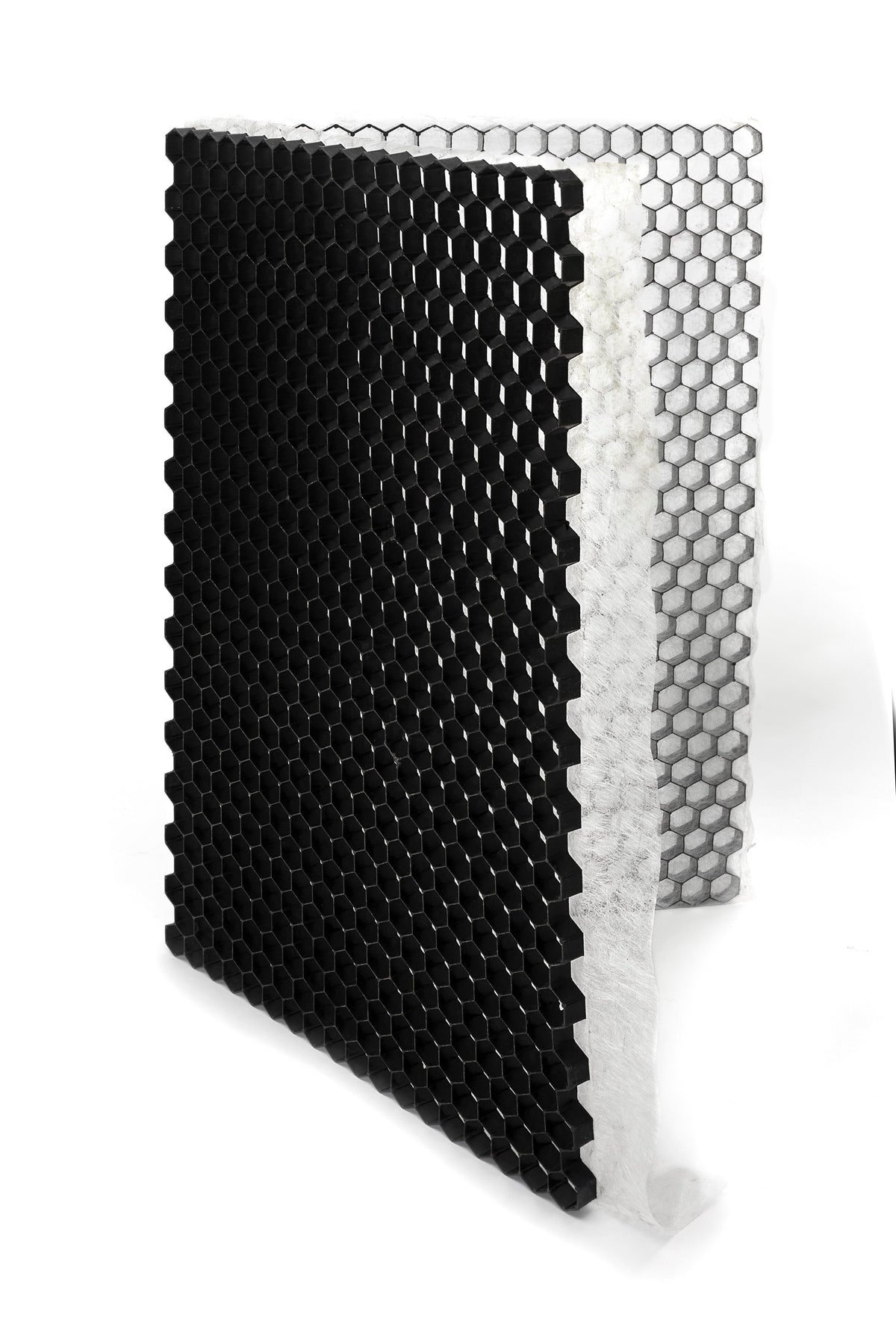

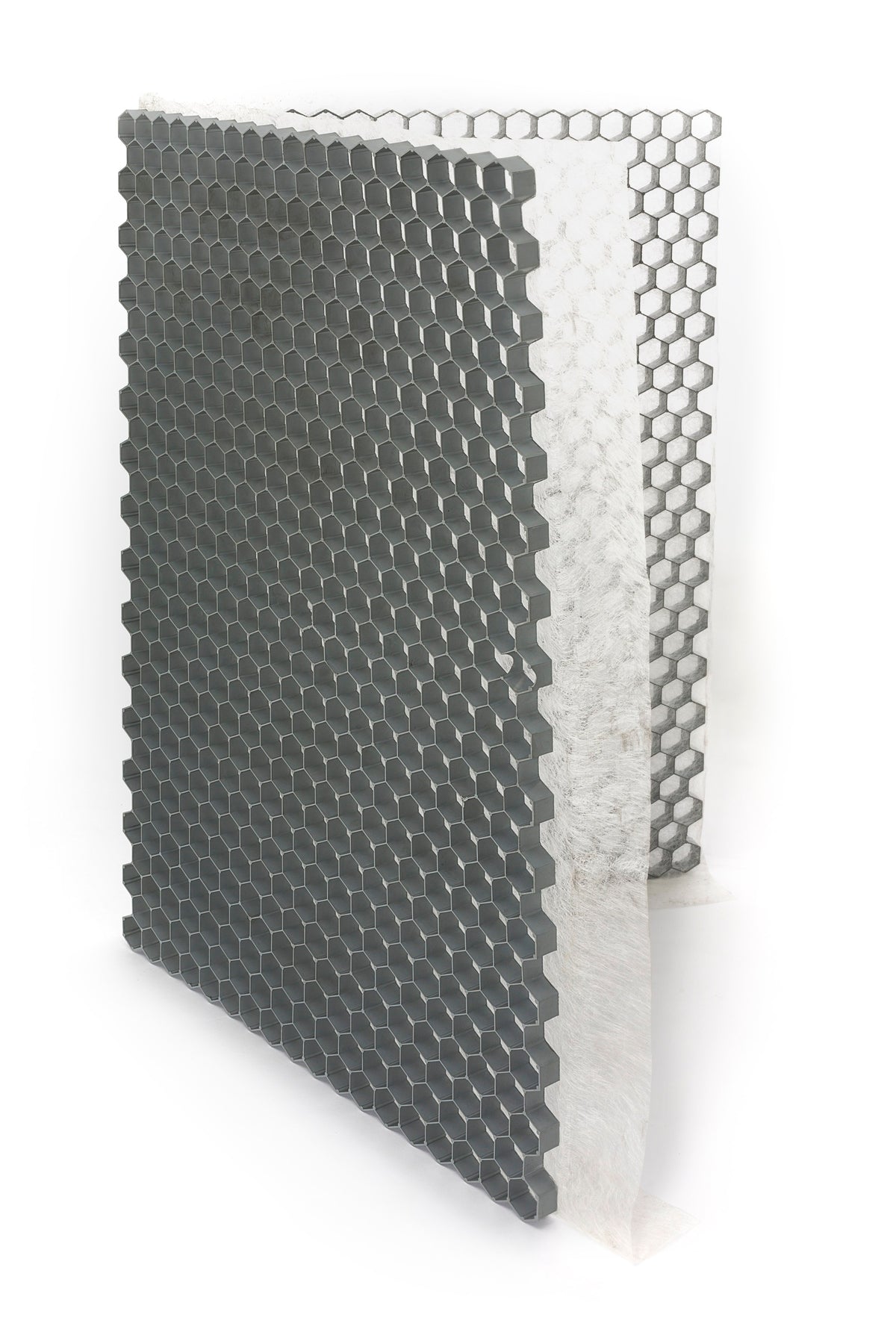

ECCOgravel Gravel Stabilisation Mat – 160 × 120 cm

ECCOgravel is a strong, permeable gravel mat for driveways, car parks, paths and patios. Its honeycomb grid locks gravel in place, so you get a firm, level surface that doesn't rut, shift or puddle. Each panel covers almost 2 m² and arrives folded, so it's quick to roll out and lay. It's made in Belgium from durable high-density polyethylene.

Why choose ECCOgravel?

  • Takes heavy loads: plastic reinforcements between the cells stop the panel deforming or breaking when vehicles turn and manoeuvre.
  • 100% water-permeable: rainwater drains straight into the ground, so you get no puddles and need no separate drainage system or minimum slope.

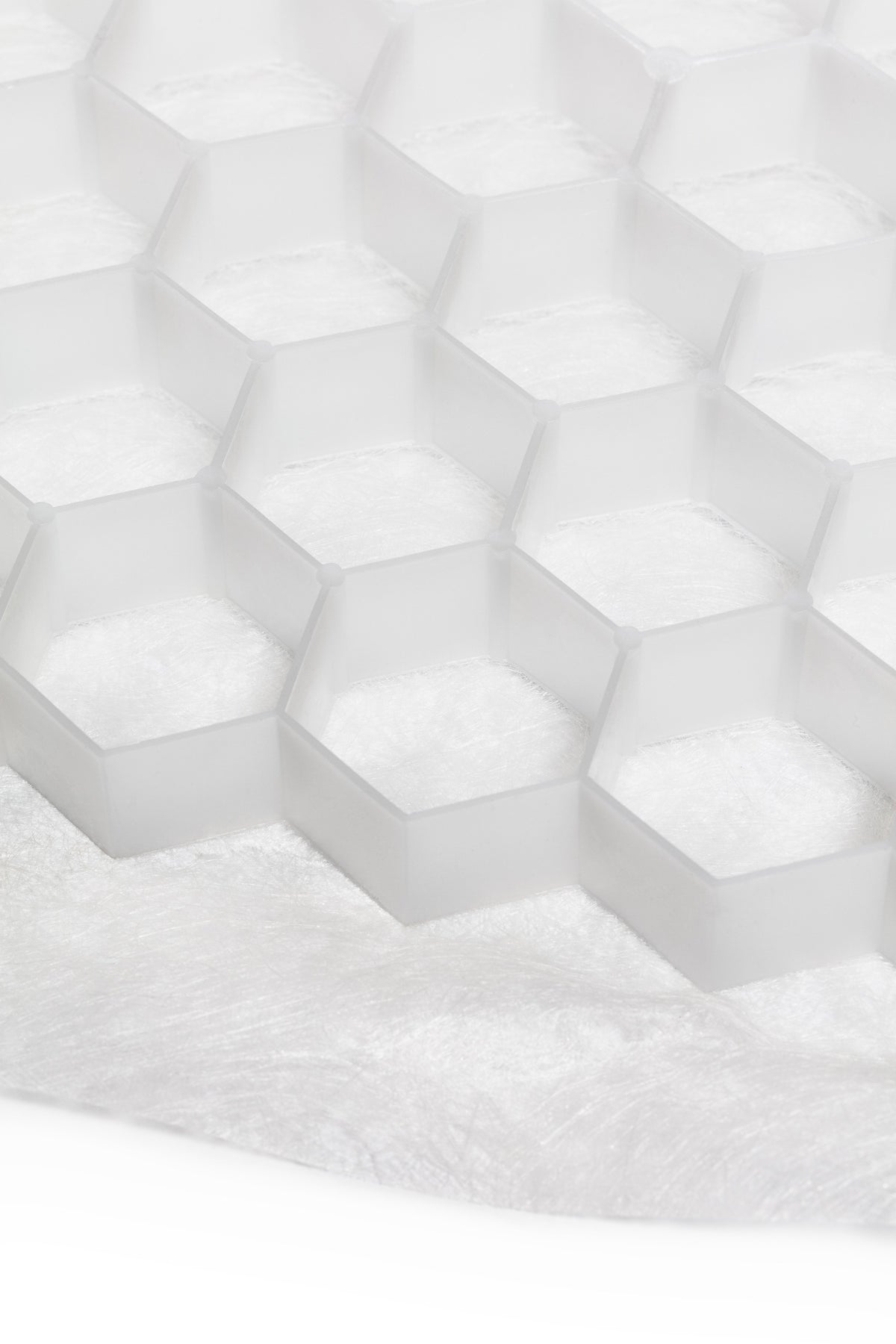

  • Gravel stays put: a fully bonded geotextile backing stops gravel working its way under the mat.
  • Weed-resistant: a welded-on anti-root fabric helps keep weeds out.
  • Fast to lay: almost 2 m² per panel, delivered folded for easy handling.
  • Lighter groundworks: no frost-free foundation depth needed, so there's less digging and a lighter base.
  • Weatherproof: frost-resistant and ultraviolet-resistant, and it stays flexible down to –20°C.
  • Accessible: certified suitable for wheelchairs, bicycles and buggies.
  • Recyclable: 100% high-density polyethylene. The black and grey mats contain recycled material.

Ideal for

Driveways and car parks • Patios and roof terraces • Garden paths and walkways • Fire access roads • Horse arenas and paddocks • Commercial paving

Choose your height

  • ECCOgravel 30 (3 cm): ideal for paths, patios and light use.
  • ECCOgravel 40 (4 cm): spreads the load better onto the base, so it's recommended for driveways and car parks.

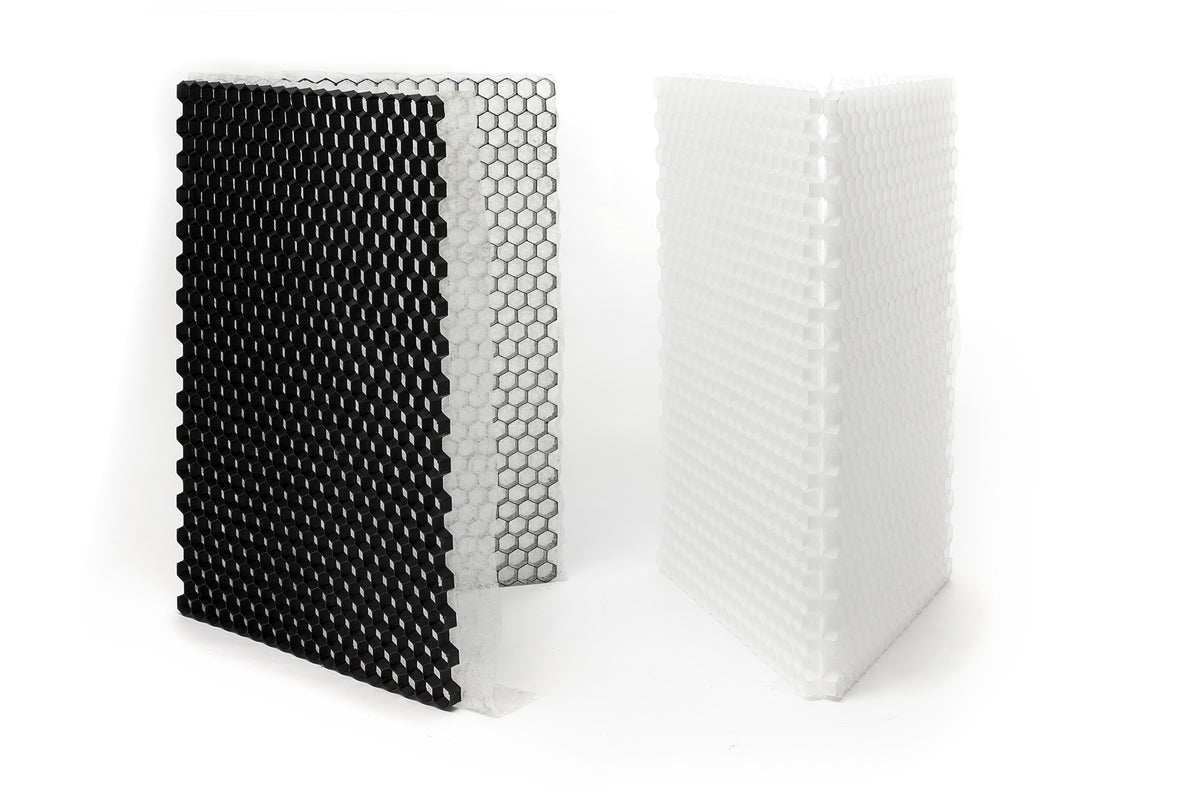

Both heights come in white, grey or black.

Technical specifications

  • Material: 100% high-density polyethylene with bonded polyester geotextile
  • Panel size: 160 × 120 cm (1.92 m² per panel)
  • Height: 3 cm (ECCOgravel 30) or 4 cm (ECCOgravel 40)
  • Cell diameter: 43 mm
  • Gravel needed: approximately 125 kg per panel (3 cm) or 154 kg per panel (4 cm)
  • Gravel size: 8–16 mm for driveways, 4–16 mm for paths
  • Frost and ultraviolet resistant: yes, flexible down to –20°C
  • Colours: white, grey or black

How many panels do I need?

Priced per panel. Each panel covers 1.92 m².
To work out how many you need, divide your area in m² by 1.92 and round up. For example, a 30 m² driveway needs 16 panels. Order a little extra if you'll be cutting panels to fit around edges.

Installation at a glance

  1. Dig out the topsoil.
  2. Fit edging so it sits 2 cm above the panels.
  3. For driveways, lay a compacted sub-base of at least 25 cm, such as crushed limestone or 0–32 mm crushed concrete.
  4. Spread a levelling layer of fine gravel or screened sand: 5 cm for driveways, up to 15 cm for paths.
  5. Lay the panels in a staggered pattern, overlapping the geotextile edges. Cut to size with a cutting disc where needed.
  6. Fill with gravel to 1–2 cm above the panels and level it off. Don't compact it, and don't drive on unfilled panels.
  7. After first use, level and top up the gravel where needed. After that, the gravel won't settle any further.

Fill it with our decorative gravel

Each 0.6 m³ bulk bag fills roughly 7–8 panels of ECCOgravel 30 or 6 panels of ECCOgravel 40. Browse our decorative stone range to finish your driveway or path. Any of our gravels up to 16 mm will work.
