ECCO Products - Multidal Mat

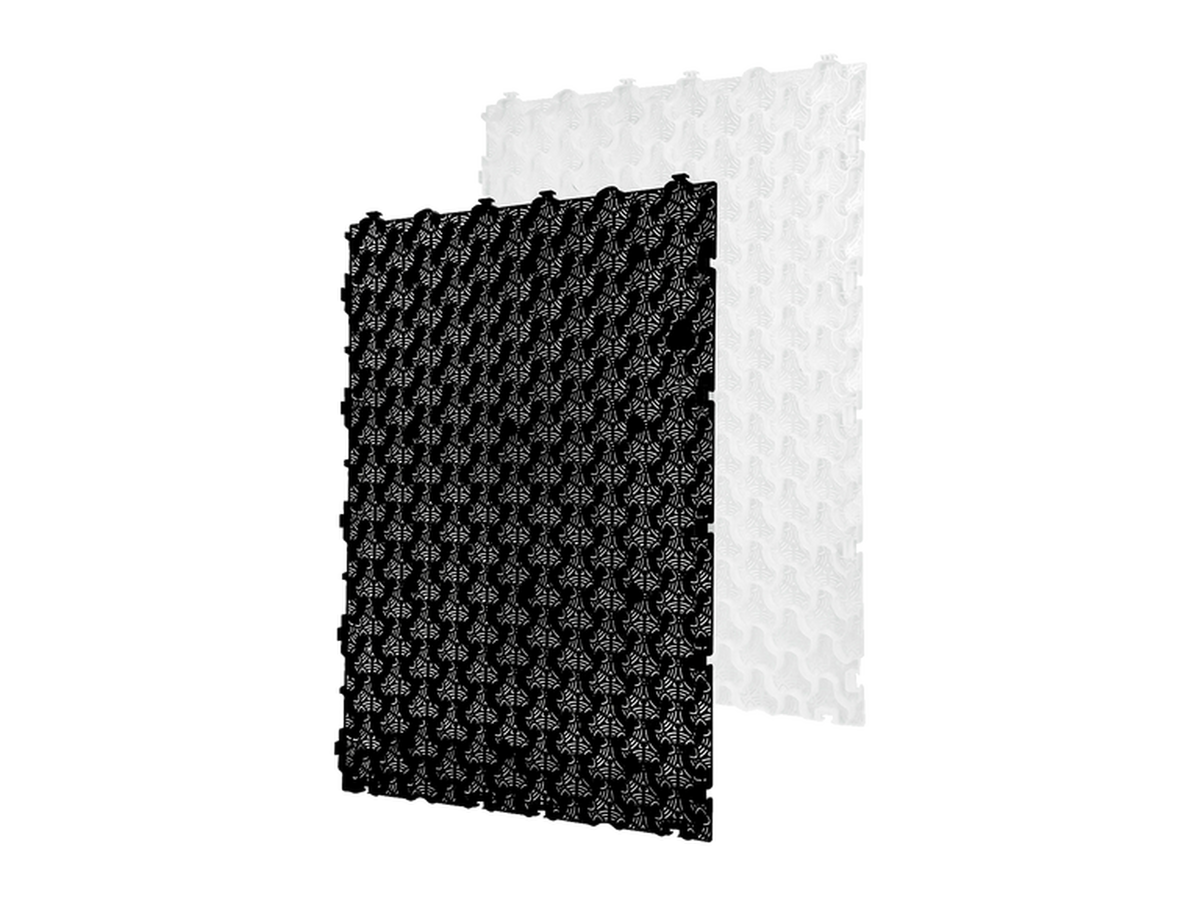

Multidal Gravel and Grass Grid – 113.2 × 78.3 cm

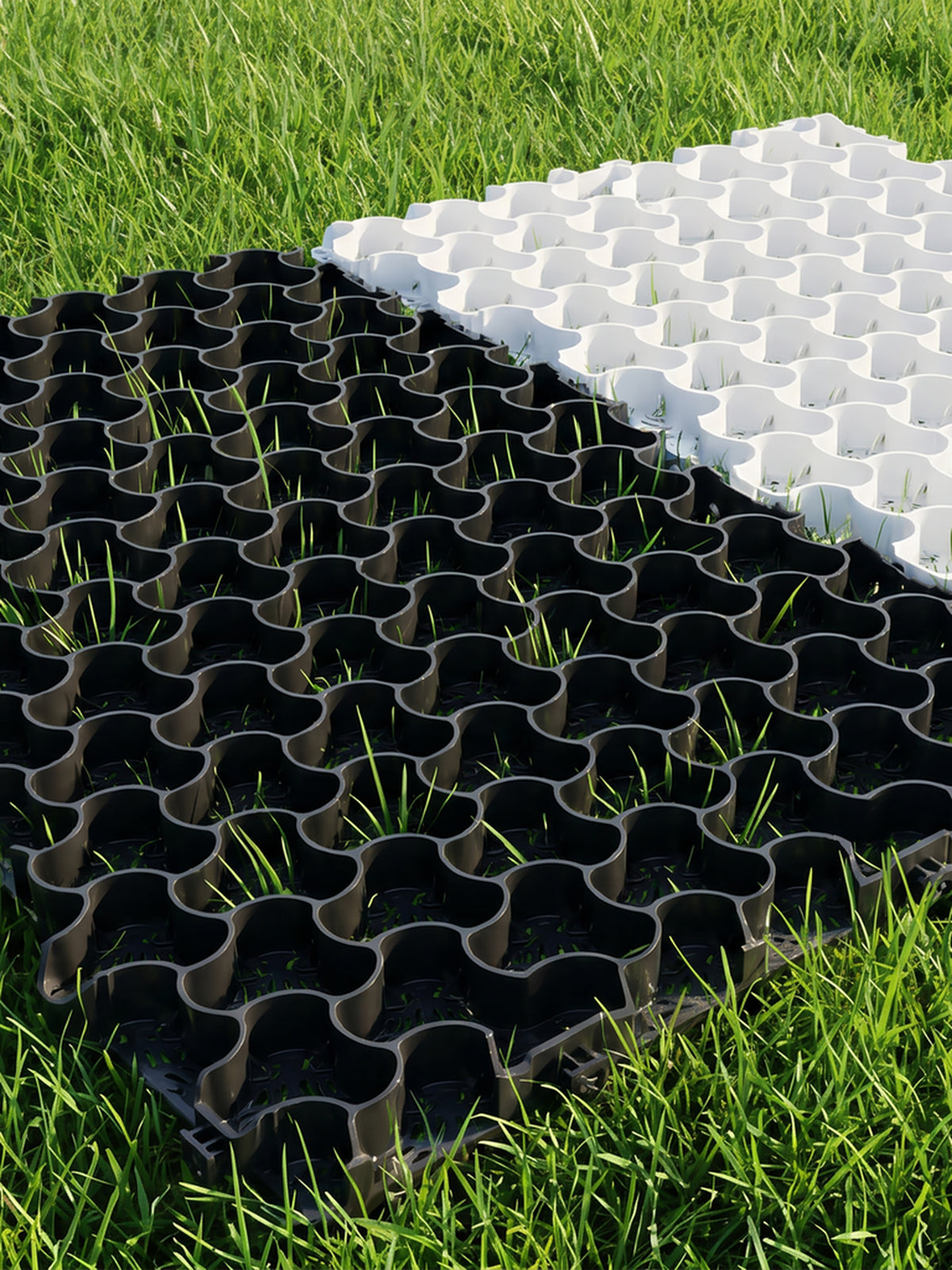

Multidal is a heavy-duty ground stabilisation grid for driveways, car parks and paths. Fill it with gravel or grass. It keeps the surface firm and level under regular vehicle traffic, and rainwater still drains straight through into the ground. Its large panels click together without tools, so one person can lay a driveway quickly.

Why choose Multidal?

• Gravel or grass: one grid takes either fill, and works with any gravel up to 25 mm.
• Built for slopes: certified for gradients up to 20%. The closed base stops gravel creeping downhill.
• Takes heavy loads: high compressive strength for cars, vans and even fire access roads.
• Fast to lay: each panel covers 0.89 m² and weighs only 3.75 kg. Panels click together with no tools.
• Drains freely: the closed base gives stability, and the surface stays highly water-permeable, so you get no puddles or runoff.
• Made to last: frost-resistant and ultraviolet-resistant high-density polyethylene that is 100% recyclable.
• Low maintenance: panels unclip without damage if you ever need to lift or replace one.
• Two colours: black (made from 100% recycled material) or white.

Ideal for

Driveways • Garden paths and footpaths • Parking areas • Sloping ground • Event grounds • Fire access roads

Technical specifications

• Material: 100% high-density polyethylene
• Panel size: 113.2 × 78.3 cm (0.89 m² per panel)
• Height: 3 cm
• Weight: 3.75 kg per panel
• Load capacity (when filled): approximately 1,622 tonnes per m²
• Gravel needed: approximately 58 kg per panel
• Gravel size: up to 25 mm (8–25 mm for driveways, 4–25 mm for paths)
• Maximum slope: 20%
• Colours: black or white

How many panels do I need?

Priced per panel. Each panel covers 0.89 m².
To work out how many you need, divide your area in m² by 0.89 and round up. For example, a 30 m² driveway needs 34 panels. Order a few extra if you'll be cutting half panels for edges and staggered rows.

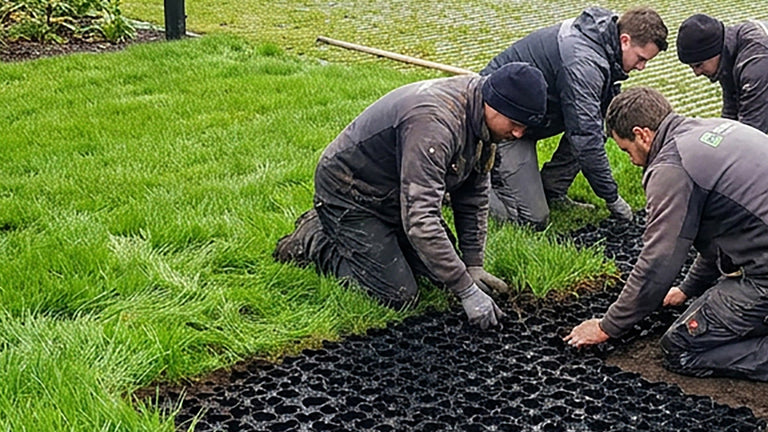

Installation at a glance (gravel)

1. Dig down to firm, load-bearing ground.
2. Fit edging kerbs so they sit 2 cm above the panels.
3. For driveways, lay a compacted sub-base of at least 25 cm, such as crushed limestone or 0–32 mm crushed concrete.
4. Spread a levelling layer of fine gravel or screened sand: 5 cm for driveways, 15 cm for paths.
5. Click the panels together in a staggered pattern, starting every second row with a half panel.
6. Fill with gravel to 1–2 cm above the panels. Don't compact decorative gravel.

For grass, use a grass substrate instead of topsoil alone, sow, and wait 6–8 weeks before driving on it, or 16 weeks for heavy use.

Fill it with our decorative gravel

Each Multidal panel takes about 58 kg of gravel. One 0.6 m³ bulk bag fills roughly 16 panels, which is about 14 m². Browse our decorative stone range to finish your driveway or path. Any of our gravels up to 25 mm will work.
